Bramac

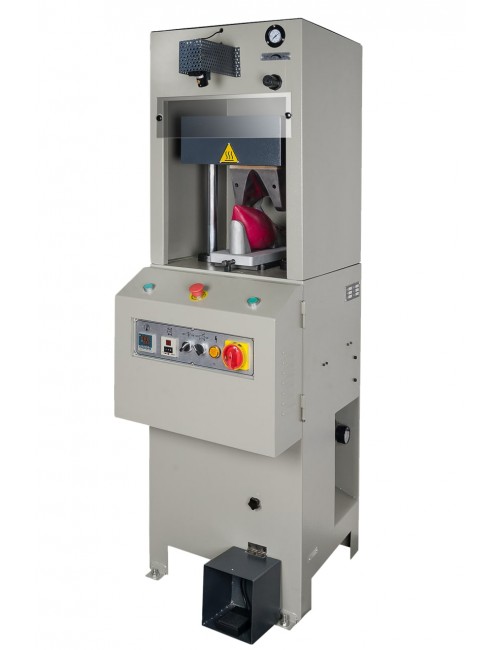

Bramac BR-230N

€0.00
Tax included

Vamp pre-forming and ironing machine with one heated station.

  • This high efficiency machine is easy to use and allows the costumer to decrease the production time, the production costs and the designing costs
  • Control panel for machine cycle’s programming, and for mould temperature
  • Teflon coated pull-down pre-forming unit
  • Universal silicone mould for pre-forming vamps
  • Adjustable optical projector for the correct upper’s positioning
Quantity

Add to favorites Add to compare

TECHNICAL SPECIFICATIONS

  • Machine Size (WxDxH): 500x620x1560 mm
  • Air pressure: 0.60 / 0.80 Mpa
  • Daily output: 1200 pairs
  • Voltage: 220V / 50 Hz
  • Power: 1.2 Kw
  • Weight: 200 Kgs

Product Details

Bramac BR-230N

Data sheet

Voltage
220V / 50 Hz
Dimensions
500x620x1560 mm
Weight
200 Kg
Power
1.2 Kw
Working Pressure
6 / 8 bar

Download

Scheda Tecnica BR-230N

Download (923.91KB)

Man. Istr. - Cat. Ric. BR-230N

Download (534.41KB)
