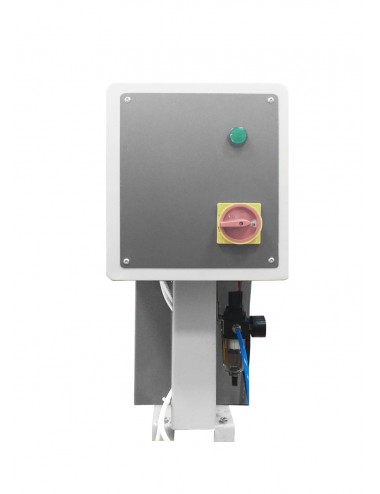

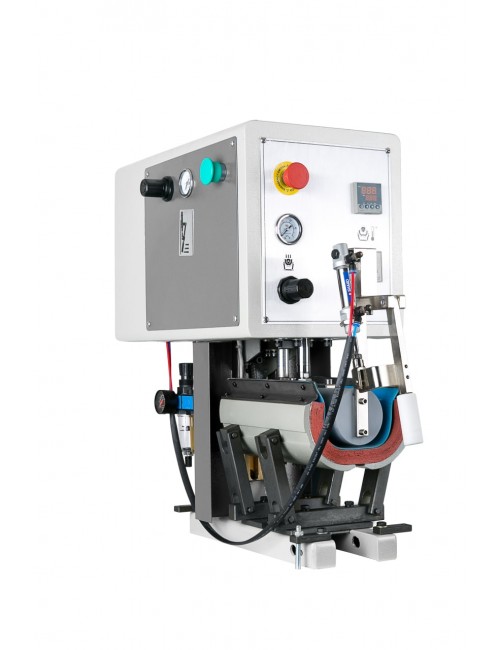

Bramac BR-58

Bench-mounted pneumatic press for applying thermoplastic toe puffs to the upper.

Pressing temperatures and times are managed and displayed by temperature controllers and timers, ensuring absolute precision.

Thanks to the installed control panel, it is possible to adjust the presser temperature (from 0°C to 300°C) and the pressing time (from 0 to 99 seconds).

Two-station press machine for humidifying the upper and reactivating the toe puff before lasting operations.

Humidifying is carried out through the upper press unit, which heats and injects superheated steam onto the upper, while reactivation is performed by the lower presser, which heats the lining and the toe puff.

The machine is equipped with a control panel allowing adjustment of the lower presser temperature (from 100°C to 200°C), steam injection time (from 0 to 9.9 seconds) and total cycle time (from 0 to 99 seconds).

Temperatures are managed and displayed by temperature controllers ensuring absolute precision.

Pneumatic press equipped with a double membrane system for pressing footwear fitted with cup soles.

Embossing press for silicone or similar materials, equipped with a thermometer, timer and pressure switch, allowing all parameters required for the pressing process to be programmed.

Available in three different versions.

Press machine for humidifying the upper and reactivating the toe puff before lasting operations.

Humidifying is carried out through the upper press unit, which heats and injects superheated steam onto the upper, while reactivation is performed by the lower presser, which heats the lining and the toe puff.

The machine is equipped with a control panel allowing adjustment of the lower presser temperature (from 100°C to 200°C), steam injection time (from 0 to 9.9 seconds) and total cycle time (from 0 to 99 seconds).

Temperatures are managed and displayed by temperature controllers ensuring absolute precision.

Manual heat press ideal for different types of processing

• Equipped with a working area of 150x150 mm
• It guarantess uniform pressing even at the ends of the work surface
• Using the control panel it is possible to adjust the temperature of the upper plate and the pressing time
• The pressure can be adjusted can be adjusted using the knob above the upper plate
• The maximum thickness worked is 8 mm and the maximum temperature is 232°C

Pneumatic hot press with two working surfaces, suitable for bonding leather with reinforcements or fabrics.

• Control panel for programming the machine cycle and temperature
• Adjustable pressure and carriage stroke
• Heated plate dimensions: 40 × 60 cm
• Max. temperature: 245°C

Two-station pneumatic press for toe puff application with automatic locking clamp.

The PP02 is suitable for bonding thermoplastic toe puffs to the upper.

Pressing temperatures and times are managed and displayed by temperature controllers and timers, ensuring absolute precision.

Thanks to the installed control panel, it is possible to adjust the presser temperature (from 0°C to 300°C) and the pressing time (from 0 to 99 seconds).

Adhesive bonding press equipped with a thermal-magnetic circuit breaker and a stable, heavy-duty cast working plate.

The electronic control unit allows precise adjustment of temperature, timer settings (with acoustic warning signal) and operating temperature from 0 to 250°C.

Press for outerwear, heat-transfer applications and leather goods, featuring an air-bladder pressure system with an inflatable rubber membrane and equipped with an electronic control system for pressure, temperature and cycle time.

Pneumatic hot press with two working surfaces, suitable for bonding leather with reinforcements or fabrics.

• Control panel for programming the machine cycle and temperature
• Adjustable pressure and carriage stroke
• Heated plate dimensions: 40 × 50 cm
• Max. temperature: 245°C

Pneumatic hot-stamping and embossing press equipped with an automatic sliding carriage, automatic foil feeding unit for hot stamping widths from 30 to 120 mm, stamping/embossing pressure selector, and electronic temperature control adjustable from 0 to 350°C.

Lining-to-upper bonding press equipped with one last for men's or women's footwear.

The machine is fitted with a timer and a special device designed to eliminate wrinkles in the upper during the pressing process.

When combined with spray application systems, it becomes a complete workstation capable of speeding up and optimizing production operations while ensuring excellent bonding quality (including synthetic materials) using water-based adhesives.

Thanks to the special characteristics of the lasts, with adjustable temperatures up to 140°C, the upper is shaped in a way that facilitates the subsequent lasting operations.

Electric heat press with dual working stations and a movable pantograph-type heated platen.

• No compressed air required
• Closing operation by means of side push-buttons with automatic opening
• Digital electronic control of time, temperature and pressure, with fault indication via touch-screen interface
• Interchangeable lower platen
• Optional accessory available for cap printing
• Piece counter and Nomex cover included

Hydraulic sole attaching press equipped with PLC control, featuring rubber segmented pressing trays with self-shaping platens and self-adjusting shoe support posts, designed for applying all types of soles, including Louis XV heels.

Equipped with hydraulic trays controlled by PLC and an inflatable cushion system.

Adhesive bonding press equipped with a thermal-magnetic circuit breaker and a stable, heavy-duty cast working plate.

Thanks to the electronic control unit, temperature, timer (with acoustic warning signal) and pressure can be precisely adjusted, with a temperature range from 0 to 250°C.
