Camarb N32-AIO-DXSX-175-E

Name: Camarb N32-AIO-DXSX-175-E
Brand: Camarb
SKU: Camarb N32-AIO-DXSX-175-E
Availability: InStock

€0.00

Tax included

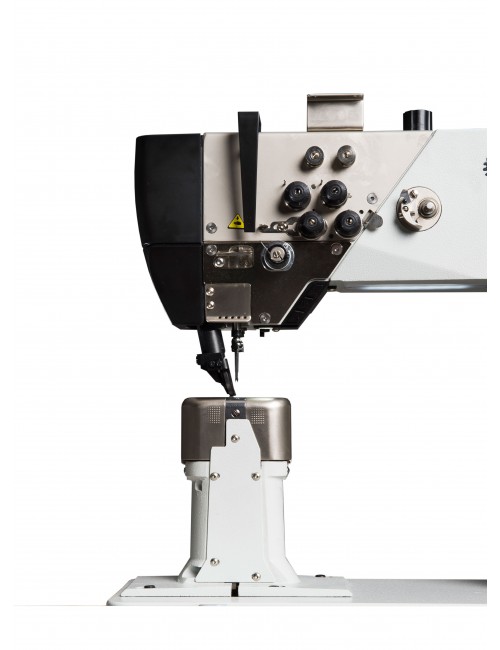

The Camarb N32-AIO-DXSX-175 E is a thin post-bed electronics sewing machine, with raised coloumn at 175 mm with servo motor integrated in the sewing head, double needle, rotary feed dog, synchronized needle and presser foot.

Electric backtracking and electric presser foot lift.

Quantity

Add to favorites Add to compare

APPLICATION AREA

The N32-175 M is suitable for the side stitching of derby shoes, for the application of outside counters on uppers and for the stitching of vamps on the upperquarters of oxford footwears.

Its continuos synchronic mechanism of wheel feed, needle feed and driven roller presser, makes materials driving considerably easier.

PRODUCT ADVANTAGES

The reduced size of the post-bed allows to sew tight uppers, that would be very hard to sew with standard post-beds
New stepper motors
Ergonomic and innovative design with more spaces for the operator and optimal visual comfort for a better work area
Roller press foot feeding control system
Higher stability during work-cycle steps
Less vibrations during the sewing process
No perforation during the backtracking of the starting and ending points with better quality of points thanks to the stepper motors
Constant stitch length for the entire seam thanks to the step motors
Easy replacement for wearing parts
Excellent quality-price ratio for the sewing machine and the parts
Automatic backtack activated by manual lever or push button

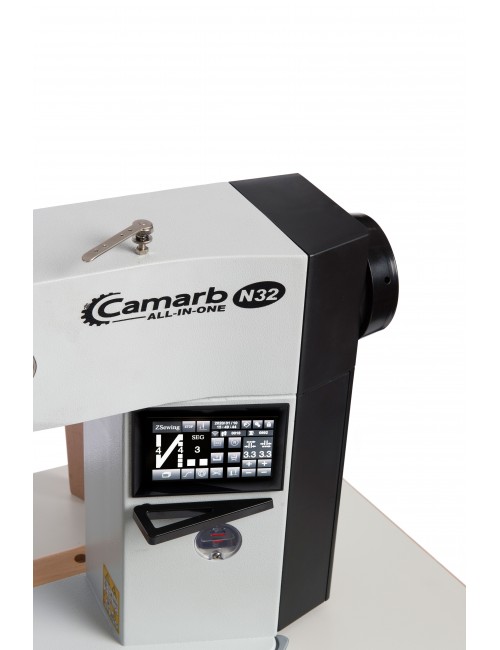

Large touch equipped with a versatile and intuitive software for programming seam sides, curves, backtacks and stitch length
New LED lighting in the work area adjustable via touch
Control keypad, backtack, half stitch and full stitch
Homogeneous seam with the same length of the stitches in the ant kind of curve

PFEATURES / TECHNICAL DATA

Max sewing speed: 2.800 r.p.m. (mod. A-B)
Max sewing speed: 2.400 r.p.m. (mod. C)
Max stitch length: 5,0 mm
Kind of stitch: 301
Lifting amount of presser foot: 7 mm
Needle system: 134-LR
Voltage: 230 V -50/60Hz
Sizes: 105x55x127 cm
Weight: 100 Kg

Product Details

Reference Camarb N32-AIO-DXSX-175-E

Data sheet

Functions: 2 needles sewing
Max sewing speed: 2.400 r.p.m. (mod. C)
2.800 r.p.m. (mod. A-B)
Max stitch lenght: 5,00
Kind of stitch: 301
Lifting amount of presser foot: 7 mm
Needle system: 134-LR
Voltage: 230 v - 50/60Hz
Dimensions: 105x55x127 cm
Weight: 100 Kg

Download

Scheda Tec. N32-AIO-DXSX-175-E

Download (622.42KB)

Quick Compare

Product	F04 CG-VD	F04/VD	MT05/2 VD	Mtype 868
Description	Macchina per cucire a colonna speciale per cuciture ornamentali su guardolo (cuoio e salpa) con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini. Motore Efka.	Macchina per cucire a colonna speciale per cuciture ornamentali finto mocassino e pelletteria con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini. Motore Efka.	Macchina per cucire mocassini tubolari e non, con vari disegni e un solo assetto di cucitura a richiesta. Macchina a 1 o 2 aghi con trasporto a griffe differenziate, increspatura manuale preimpostata e variabile a mezzo ginocchiera durante la cucitura. La macchina è predisposta per la realizzazione di 11 diverse cuciture e può cucire anche il mocassino montato.	Macchina a colonna a 2 aghi montata su tavolo e sostegno con trasporto inferiore: Trasporto punta d'ago e piedini alternati Barre ago scollegabili Crochet grande montato su albero orizzontale Controllo per 2 differenti lunghezze punto Corsa del piedino regolabile tramite manopola e dispositivo rasafilo Sollevamento del piedino automatico Affrancatura automatica
Functions	2 Needles	2 Needles	2 Needles	1 Needle
Max sewing speed	500 punti/min	500 punti/min	500 punti/min	2.500 s.p.m.
Max stitch lenght	0-12 mm	0-12 mm	0-8 mm	12,0 mm
Lifting amount of presser foot				10,0 - 20,0 mm
Needle system	328-214 x 1	328-214 x 1	328-214 x 2	134-35
Voltage		220V 50/60 Hz	220V 50/60 Hz	V 230-50/60 hz
Dimensions				106x60x107 cm
Weight	100 kg	100 kg	130 kg	125 kg

In the same category

Pfaff

1574

Macchina a colonna elettronica a 2 aghi, utilizzata per la maggior parte dei lavori di cucitura nella produzione di calzature uomo/donna, calzature antinfortunistiche, pelletteria e interni di automobili.

Dotata di trasporto a griffa rotante, piedino a rotella, trasporto ago, dispositivo rasafilo (regolabile), affrancatura automatica e alzata automatica del piedino.

Camarb

Camarb N32-AIO-DXSX-310-M

The Camarb N32-AIO-DXSX-310-M is a thin post-bed sewing machine, with raised coloumn at 310 mm with servo motor integrated in the sewing head, double needle, rotary feed dog, synchronized needle and presser foot by means of stepper motors.

Electric backtracking and electric presser foot lift.

CMCI

MT05/2 VD

Macchina per cucire mocassini tubolari e non, con vari disegni e un solo assetto di cucitura a richiesta.

Macchina a 1 o 2 aghi con trasporto a griffe differenziate, increspatura manuale preimpostata e variabile a mezzo ginocchiera durante la cucitura.

La macchina è predisposta per la realizzazione di 11 diverse cuciture e può cucire anche il mocassino montato.

CMCI

F04/VD

Macchina per cucire a colonna speciale per cuciture ornamentali finto mocassino e pelletteria con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Pfaff

574

Macchina a colonna a 2 aghi, utilizzata per la maggior parte dei lavori di cucitura nella produzione di calzature uomo/donna, calzature antinfortunistiche e pelletteria.

Dotata di trasporto a griffa rotante, piedino a rotella e, a seconda delle versioni, dispositivo rasafilo, affrancatura automatica e alzata automatica del piedino.

CMCI

F04 CG-VD

Macchina per cucire a colonna speciale per cuciture ornamentali su guardolo (cuoio e salpa) con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Durkopp Adler

Mtype 868

Macchina a colonna a 2 aghi montata su tavolo e sostegno con trasporto inferiore:

Trasporto punta d'ago e piedini alternati
Barre ago scollegabili
Crochet grande montato su albero orizzontale
Controllo per 2 differenti lunghezze punto
Corsa del piedino regolabile tramite manopola e dispositivo rasafilo
Sollevamento del piedino automatico
Affrancatura automatica

Camarb

Camarb N32-AIO-M

The CAMARB N32-ALL-IN-ONE-M (MECHANICAL) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, with 2 needles, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings .

Thread trimming device, electric backtack and electric presser foot lift.

Camarb

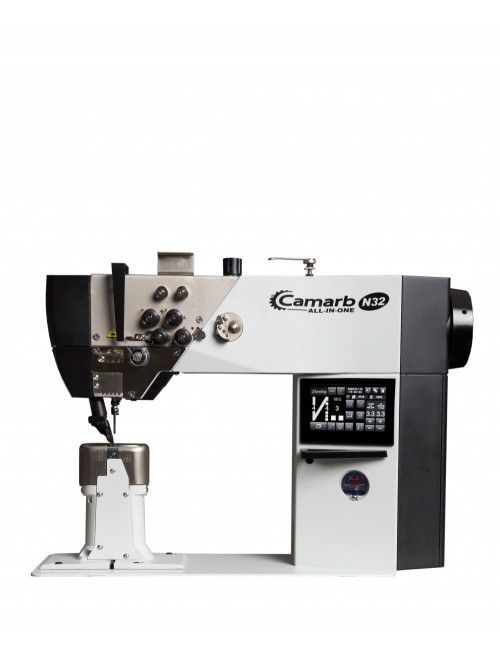

Camarb N32-AIO-E

The CAMARB N32-ALL-IN-ONE-E (ELECTRONIC) is an electronic post bed sewing machine with servo motor integrated in the sewing head, with 2 needles, rotating feed dog, roller foot synchronized with the movement of the needle by means of motors step.

Thread trimming device, electric backtack and electric presser foot lift.

Camarb

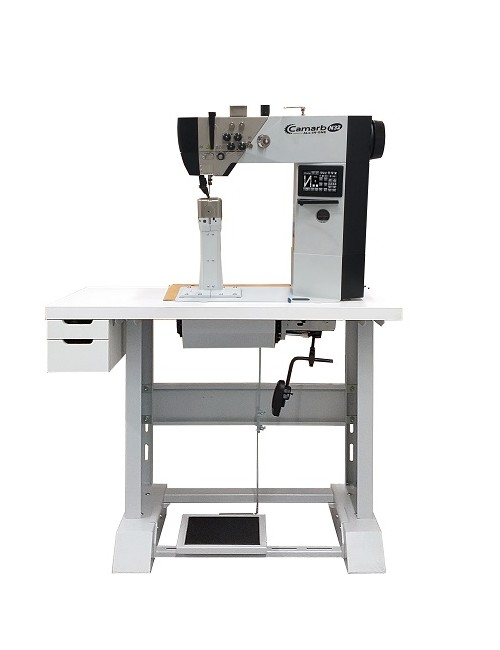

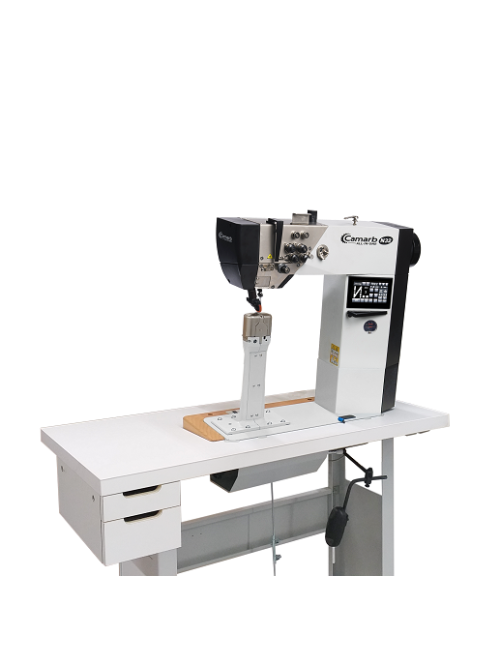

Camarb N32-AIO-DXSX-310-E

The Camarb N32-AIO-DXSX-310-E is a thin post-bed electronics sewing machine, with raised coloumn at 310 mm with servo motor integrated in the sewing head, double needle, rotary feed dog, synchronized needle and presser foot by means of stepper motors.

Electric backtracking and electric presser foot lift.

Camarb

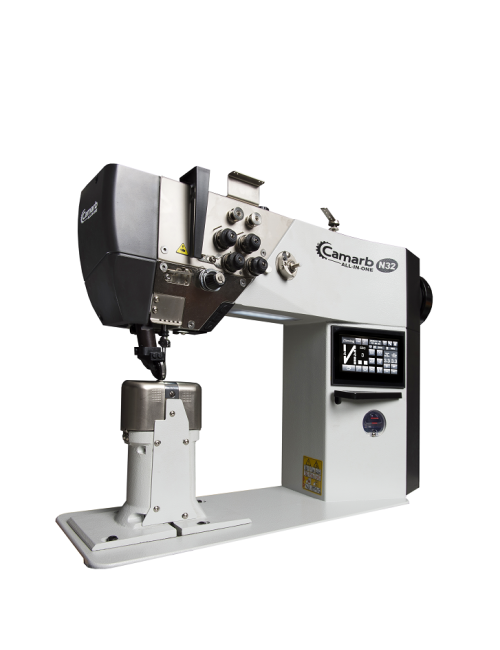

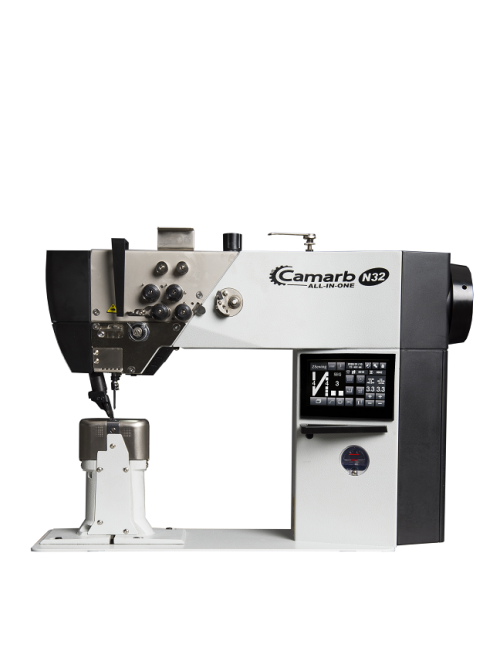

Camarb N32-AIO-CG-E
