Camarb

Camarb N31-AIO-E-C997-CA

Name: Camarb N31-AIO-E-C997-CA
Brand: Camarb
SKU: Camarb N31-ALL IN ONE-E-C997-CA
Availability: InStock

€0.00

Tax included

The new CAMARB N31-ALL-IN-ONE-E-C997-CA is a post-bed sewing machine with a special hight column (413 mm), single needle, electronic with integrated servo motor.

Thread trimmer, doulbe transport rotating synchronized by means of stepper motors.

Rotating horizontal hook, angle shaped sewing on heel.

Quantity

Add to favorites Add to compare

APPLICATION AREA

It’s needle-moving system allows to sew difficult materials susch as padded items or multi-layer materials, avoding them from slipping.

When sewing closed uppers, the right post-bed allows to move the upper on the left side of the post-bed, advantageous features for child’s uppers.

The thread trimmer, the backtracking and the presser foot lifter make the working progress more efficient.

PRODUCT ADVANTAGES

New stepper motors
The 413 mm Ø63mm coloumn is suitable for boots sewing

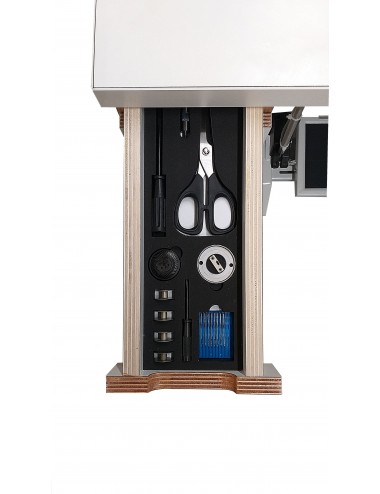

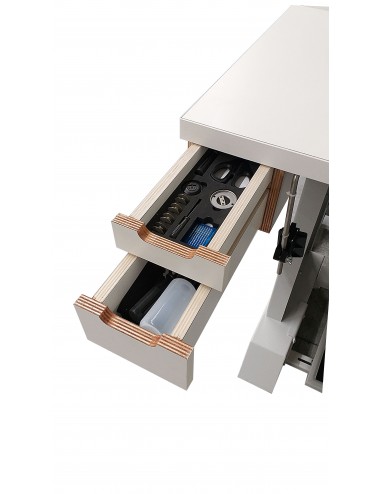

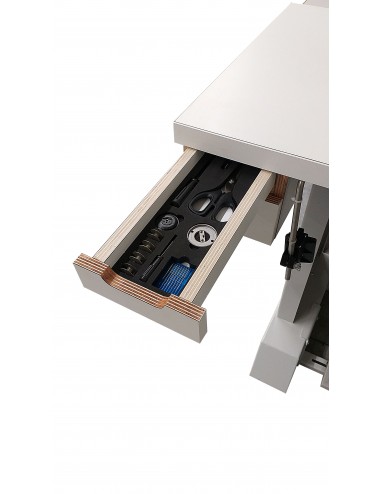

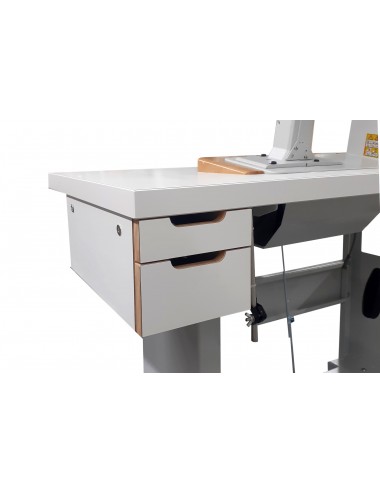

Table equipped with a removable section which allows the correct boot positioning on the coloumn
Ergonomic and innovative design with more spaces for the operator and optimal visual comfort for a better work area
Roller press foot feeding control system
Higher stability during work-cycle steps
Less vibrations during the sewing process
No perforation during the backtracking of the starting and ending points, with better quality of points thanks to the stepper motors
Constant stitch length for the entire seam thanks to the step motors
Assembled hook on horizontal shaft to allow a rapid bobbin extraction without upper dislodging betwixt the two transport whells
The reduced dimensions of the column allow, during the upper assembling step, to make seams easier on woman and child upper
New thread trimmer, easy to adjust, with short threads cutting sistem
Easy replacement for wearing parts
Excellent quality-price ratio for the sewing machine and the parts
Automatic backtack activated by manual lever or push button
Large touch equipped with a versatile and intuitive software for programming seam sides, curves, backtacks and stitch length
New LED lighting in the work area adjustable via touch
Control keypad, backtack, half stitch and full stitch
Homogeneous seam with the same length of the stitches in the ant kind of curve

FEATURES/TECHNICAL DATA

Max sewing speed: 2.500 r.p.m.
Max stitch length: 5,0 mm
Kind of stitch: 301
Needle system: 134-LR
Voltage: 230 V - 50/60Hz
Dimensions: 105x55x127 cm
Weight: 140 kg

Product Details

Reference Camarb N31-ALL IN ONE-E-C997-CA

Data sheet

Functions: 1 Needle Sewing
Max sewing speed: 2500 r.p.m.
Max stitch lenght: 5,0 mm
Kind of stitch: 301
Needle system: 134 L-R
Voltage: 230V - 50/60Hz
Dimensions: 105x55x127 cm
Weight: 140 KG

Condition New

Download

Scheda Tecnica N31-AIO-E-C997-CA

Download (1.04MB)

Inst. Manual N31-AIO-E-C997-CA

Download (812.57KB)

Man. Istr. Camarb N31E-N32E-N33E

Download (5.55MB)

Man. Prog. Camarb N31E-N32E-N33E

Download (1.62MB)

Cat. Ric. N31-E-AIO-C997-CA-RC

Download (3.86MB)
