Camarb

Camarb N31-AIO-DX-310-M

€0.00
Tax included

Thin post-bed sewing machine with raised coloumn at 310 mm (MECHANICAL) with servo motor integrated in the sewing head,single needle,rotary feed dog, synchronized needle and presser foot.

Electric backtracking and electric presser foot lift.

Quantity

Add to favorites Add to compare

APPLICATION AREA

The N31-AIO-DX-310-M is suitable for the side stitching of derby shoes, for the application of outside counters on uppers and for the stitching of vamps on the upperquarters of oxford footwears.

Its continuos synchronic mechanism of wheel feed, needle feed and driven roller presser, makes materials driving considerably easier.

PRODUCT ADVANTAGES

  • The reduced size of the post-bed allows to sew tight uppers, that would be very hard to sew with standard post-beds
  • Ergonomic and innovative design with more spaces for the operator and optimal visual comfort for a better work area
  • Roller press foot feeding control system
  • Higher stability during work-cycle steps/Less vibrations during the sewing process
  • No perforation during the backtracking of the starting and ending points, with better quality of points
  • Constant stitch length for the entire seam
  • Excellent quality-price ratio for the sewing machine and the parts
  • Easy replacement for wearing parts
  • Automatic backtack activated by manual lever or push button
  • Large touch equipped with a versatile and intuitive software for programming seam sides, curves, backtacks and stitch length
  • New LED lighting in the work area adjustable via touch
  • Control keypad, backtack, half stitch and full stitch
  • Homogeneous seam with the same length of the stitches in the ant kind of curve

TECHNICAL DATA

  • Max sewing speed: 2.800 r.p.m. (mod. A-B)
  • Max sewing speed: 2.400 r.p.m. (mod. C)
  • Max stitch length: 4,0 mm
  • Kind of stitch: 301
  • Lifting amount of presser foot: 7 mm
  • Needle system: 134-LR
  • Voltage: 230 V - 50/60Hz
  • Dimensions: 105x55x127 cm
  • Weight: 100 kg

Product Details

Camarb N31-AIO-DX-310-M

Data sheet

Functions
1 Needle Sewing
Max sewing speed
2.400 r.p.m. (mod. C)
2.800 r.p.m. (mod. A-B)
Max stitch lenght
4,0 mm
Kind of stitch
301
Lifting amount of presser foot
7 mm
Needle system
134-LR
Voltage
230 V - 50/60Hz
Dimensions
105x55x127 cm
Weight
100 kg

Download

Scheda Tecnica N31-AIO-DX-310-M

Download (225.56KB)

Man. Progr. N31-N32-N33-AIO-M

Download (1.53MB)

Quick Compare

Product
 N24-AC-Z F04 CG-VD F04/VD MT05/2 VD
Description

Zig-zag post-bed sewing machine for medium-heavy materials as leather, artificial leather, heavy clothes etc.

Macchina per cucire a colonna speciale per cuciture ornamentali su guardolo (cuoio e salpa) con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Macchina per cucire a colonna speciale per cuciture ornamentali finto mocassino e pelletteria con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Macchina per cucire mocassini tubolari e non, con vari disegni e un solo assetto di cucitura a richiesta.

Macchina a 1 o 2 aghi con trasporto a griffe differenziate, increspatura manuale preimpostata e variabile a mezzo ginocchiera durante la cucitura.

La macchina è predisposta per la realizzazione di 11 diverse cuciture e può cucire anche il mocassino montato.
Functions
 Zig Zag 2 Needles 2 Needles 2 Needles
Max sewing speed
 2000 r.p.m. 500 punti/min 500 punti/min 500 punti/min
Max stitch lenght
 5 mm 0-12 mm 0-12 mm 0-8 mm
Lifting amount of presser foot
 8 mm
Needle system
 328-214 x 1 328-214 x 1 328-214 x 2
Voltage
 single-phase V 230 - 50/60 Hz 220V 50/60 Hz 220V 50/60 Hz
Dimensions
 105x55x122 cm
Weight
 85 kg 100 kg 100 kg 130 kg

In the same category

F04 CG-VD F04 CG-VD
CMCI

F04 CG-VD

Macchina per cucire a colonna speciale per cuciture ornamentali su guardolo (cuoio e salpa) con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Camarb N31-AIO-DX-175-E Camarb N31-AIO-DX-175-E Camarb N31-AIO-DX-175-E
Camarb

Camarb N31-AIO-DX-175-E

Thin post bed electronics sewing machine with raised coloumn at 175 mm (ELECTRONIC) and servo motor integrated in the sewing head.

  • Single needle
  • Rotary feed dog
  • Synchronized needle
  • Presser foot by means of stepper motors.
  • Electric backtracking
  • Electric presser foot lift
Mtype 888 Mtype 888 Mtype 888
Durkopp Adler

Mtype 888

Macchina a colonna a 1 ago montata su tavolo e sostegno con trasporto inferiore, trasporto a griffa rotante, punta d'ago e piedino a rotella sincronizzato, crochet grande montato su albero orizzontale, dispositivo rasafilo, sollevamento del piedino automatico e affrancatura automatica.

Disponibile anche in versione a 2 aghi.

Camarb N31-AIO-E Camarb N31-AIO-E Camarb N31-AIO-E
Camarb

Camarb N31-AIO-E

The CAMARB N31-ALL-IN-ONE-E (ELECTRONIC) is a post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, rotating feed dog, roller foot synchronized with the movement of the needle by means of motors step.

Thread trimming device, electric backtack and electric foot lift.

Camarb N31-AIO-E-C997-CP Camarb N31-AIO-E-C997-CP Camarb N31-AIO-E-C997-CP
Camarb

Camarb N31-AIO-E-C997-CP

The CAMARB N31-ALL IN ONE-E-C997-CP is a post-bed sewing machine with servo-drive integrated in the sewing head, single needle, rotary feed dog, synchronized needle and presser foot by means of stepper motors.

Thread trimmer, electric backtracking and electric presser foot lift.

Small Crochet.

1591 1591 1591
Pfaff

1591

Macchina  a colonna elettronica ad un ago, utilizzata per la maggior parte dei lavori di cucitura nella produzione di calzature uomo/donna, calzature antinfortunistiche, pelletteria e interni di automobili.

Dotata di trasporto a griffa rotante, piedino a rotella, trasporto ago, dispositivo rasafilo (regolabile), affrancatura automatica e alzata automatica del piedino.

Camarb N31-AIO-E-C997-CAS B Camarb N31-AIO-E-C997-CAS B Camarb N31-AIO-E-C997-CAS B
Camarb

Camarb N31-AIO-E-C997-CAS B

The new CAMBAR N31-ALL-IN-ONE-E-C997 CAS-B is a post-bed sewing machine with single needle, electonic, with integrated servo motor.

Thread/Backtracking, double transport rotating syncrhronized by means of stepper motors.

Rotating horizontal hook, angle shaped sewing on heel.

Camarb N31-AIO-M Camarb N31-AIO-M Camarb N31-AIO-M
Camarb

Camarb N31-AIO-M

The CAMARB N31-ALL-IN-ONE-M is a MECHANICAL post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.

Thread trimming device, electric backtack and electric foot lift.

Camarb N33-AIO-M Camarb N33-AIO-M Camarb N33-AIO-M
Camarb

Camarb N33-AIO-M

The CAMBAR N33-ALL-IN-ONE-M (MECHANICAL) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, 1-needle, sew and trim, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.

Thread trimming device, electric backtack and electric presser foot lift.

591 591 591
Pfaff

591

Macchina  a colonna ad un ago, utilizzata per la maggior parte dei lavori di cucitura nella produzione di calzature uomo/donna, calzature antinfortunistiche e pelletteria.

Dotata di trasporto a griffa rotante, piedino a rotella, trasporto ago e, a seconda delle versioni, dispositivo rasafilo, affrancatura automatica e alzata automatica del piedino.

Camarb N31-AIO-E-C997-CA Camarb N31-AIO-E-C997-CA Camarb N31-AIO-E-C997-CA
Camarb

Camarb N31-AIO-E-C997-CA

The new CAMARB N31-ALL-IN-ONE-E-C997-CA is a post-bed sewing machine with a special hight column (400 mm), single needle, electronic with integrated servo motor.

Thread trimmer, doulbe transport rotating synchronized by means of stepper motors.

Rotating horizontal hook, angle shaped sewing on heel.

MT05/2 VD MT05/2 VD
CMCI

MT05/2 VD

Macchina per cucire mocassini tubolari e non, con vari disegni e un solo assetto di cucitura a richiesta.

Macchina a 1 o 2 aghi con trasporto a griffe differenziate, increspatura manuale preimpostata e variabile a mezzo ginocchiera durante la cucitura.

La macchina è predisposta per la realizzazione di 11 diverse cuciture e può cucire anche il mocassino montato.

Camarb N31-AIO-CG-E Camarb N31-AIO-CG-E Camarb N31-AIO-CG-E
Camarb

Camarb N31-AIO-CG-E

The CAMARB N31-ALL-IN-ONE-CG-E (ELECTRONIC with BIG CROCHET) is a post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, rotating feed dog, roller foot synchronized with the movement of the needle by means of step motors.

Crocet Grande, thread trimming device, electric postage and electric presser foot lift.

Camarb N31-AIO-E-C997-CAS Camarb N31-AIO-E-C997-CAS Camarb N31-AIO-E-C997-CAS
Camarb

Camarb N31-AIO-E-C997-CAS

The new Camarb N31-ALL-IN-ONE-E-C997 CAS is an extremely versatile and reliable post bed machine, available in the electronic version equipped with step motors.

Single needle, large vertical hook and in numerous other column configurations for any type of seam need.

BF-315 BF-315
CMCI

BF-315

Macchina per cucire tomaie su fondi a cassetta (in particolare scarpe da bambino), trasporto a punta d'ago con crochet rotativo.

Optional: Affrancatura iniziale e finale in automatico e dotazione di retromarcia.

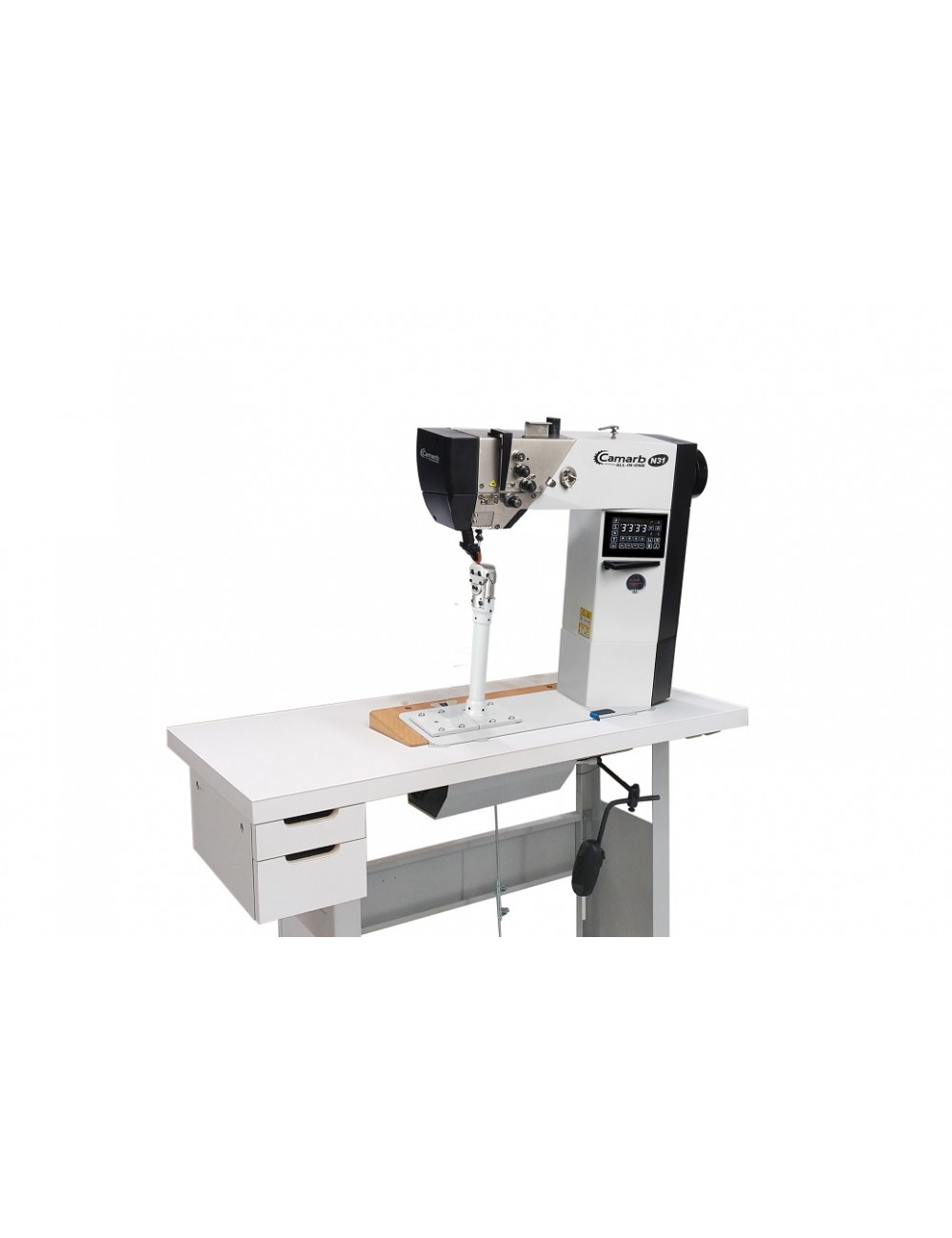

Camarb N31-AIO-DX-310-E Camarb N31-AIO-DX-310-E Camarb N31-AIO-DX-310-E
