Camarb

Camarb N33-AIO-E

€0.00
Tax included

The CAMARB N33-ALL-IN-ONE-E (ELECTRONIC) is an electronic post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, sews and trims, rotating feed dog, roller foot synchronized with the movement of the needle by means of step motors.

Thread trimming device, electric backtack and electric foot lift.

Quantity

Add to favorites Add to compare

Technical features

  • Stitch type: 301 (double lockstitch)
  • Needle system: 134
  • Passage under the roller foot: 7 mm
  • Passage width: 265 mm
  • Passage height: 70 mm
  • Column height: 180 mm

Head part size

  • Length: about 620mm
  • Width: about 155mm
  • Height (above the table): about 425 mm
  • Base plate dimensions: 520 x 177 mm
  • Maximum speed: 3000 stitches / min depending on the material, processing and stitch length
  • Net weight of the head: 70 kg
  • Gross weight of the head: 80 kg

Product Details

Camarb N33-AIO-E

Data sheet

Functions
1 needle sewing
Max sewing speed
3000 stitches / min depending on the material, processing and stitch length
Kind of stitch
301
Needle system
134

Download

Man Istr. N31-32-33

Download (6.25MB)

Man Prog. N31E-32E-33E

Download (7.69MB)

Scheda Tecnica N33-AIO-E

Scheda Tecnica N33-AIO-E

Download (203.63KB)

Cat. Ric. N31E-N32E-N33E AIO CG

Download (6.24MB)

Cat Ric N31E-N32E-N33E AIO CG V2

Download (6.13MB)

Quick Compare

Product
 N24-AC-Z F04 CG-VD F04/VD MT05/2 VD
Description

Zig-zag post-bed sewing machine for medium-heavy materials as leather, artificial leather, heavy clothes etc.

Macchina per cucire a colonna speciale per cuciture ornamentali su guardolo (cuoio e salpa) con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Macchina per cucire a colonna speciale per cuciture ornamentali finto mocassino e pelletteria con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Macchina per cucire mocassini tubolari e non, con vari disegni e un solo assetto di cucitura a richiesta.

Macchina a 1 o 2 aghi con trasporto a griffe differenziate, increspatura manuale preimpostata e variabile a mezzo ginocchiera durante la cucitura.

La macchina è predisposta per la realizzazione di 11 diverse cuciture e può cucire anche il mocassino montato.
Functions
 Zig Zag 2 Needles 2 Needles 2 Needles
Max sewing speed
 2000 r.p.m. 500 punti/min 500 punti/min 500 punti/min
Max stitch lenght
 5 mm 0-12 mm 0-12 mm 0-8 mm
Lifting amount of presser foot
 8 mm
Needle system
 328-214 x 1 328-214 x 1 328-214 x 2
Voltage
 single-phase V 230 - 50/60 Hz 220V 50/60 Hz 220V 50/60 Hz
Dimensions
 105x55x122 cm
Weight
 85 kg 100 kg 100 kg 130 kg

In the same category

Camarb N31-AIO-CG-E Camarb N31-AIO-CG-E Camarb N31-AIO-CG-E
Camarb

Camarb N31-AIO-CG-E

The CAMARB N31-ALL-IN-ONE-CG-E (ELECTRONIC with BIG CROCHET) is a post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, rotating feed dog, roller foot synchronized with the movement of the needle by means of step motors.

Crocet Grande, thread trimming device, electric postage and electric presser foot lift.

Camarb N31-AIO-E-C997-CP Camarb N31-AIO-E-C997-CP Camarb N31-AIO-E-C997-CP
Camarb

Camarb N31-AIO-E-C997-CP

The CAMARB N31-ALL IN ONE-E-C997-CP is a post-bed sewing machine with servo-drive integrated in the sewing head, single needle, rotary feed dog, synchronized needle and presser foot by means of stepper motors.

Thread trimmer, electric backtracking and electric presser foot lift.

Small Crochet.

MT05/2 VD MT05/2 VD
CMCI

MT05/2 VD

Macchina per cucire mocassini tubolari e non, con vari disegni e un solo assetto di cucitura a richiesta.

Macchina a 1 o 2 aghi con trasporto a griffe differenziate, increspatura manuale preimpostata e variabile a mezzo ginocchiera durante la cucitura.

La macchina è predisposta per la realizzazione di 11 diverse cuciture e può cucire anche il mocassino montato.

Camarb N33-AIO-M Camarb N33-AIO-M Camarb N33-AIO-M
Camarb

Camarb N33-AIO-M

The CAMBAR N33-ALL-IN-ONE-M (MECHANICAL) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, 1-needle, sew and trim, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.

Thread trimming device, electric backtack and electric presser foot lift.

F04/VD
CMCI

F04/VD

Macchina per cucire a colonna speciale per cuciture ornamentali finto mocassino e pelletteria con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Mtype 888 Mtype 888 Mtype 888
Durkopp Adler

Mtype 888

Macchina a colonna a 1 ago montata su tavolo e sostegno con trasporto inferiore, trasporto a griffa rotante, punta d'ago e piedino a rotella sincronizzato, crochet grande montato su albero orizzontale, dispositivo rasafilo, sollevamento del piedino automatico e affrancatura automatica.

Disponibile anche in versione a 2 aghi.

591 591 591
Pfaff

591

Macchina  a colonna ad un ago, utilizzata per la maggior parte dei lavori di cucitura nella produzione di calzature uomo/donna, calzature antinfortunistiche e pelletteria.

Dotata di trasporto a griffa rotante, piedino a rotella, trasporto ago e, a seconda delle versioni, dispositivo rasafilo, affrancatura automatica e alzata automatica del piedino.

1591 1591 1591
Pfaff

1591

Macchina  a colonna elettronica ad un ago, utilizzata per la maggior parte dei lavori di cucitura nella produzione di calzature uomo/donna, calzature antinfortunistiche, pelletteria e interni di automobili.

Dotata di trasporto a griffa rotante, piedino a rotella, trasporto ago, dispositivo rasafilo (regolabile), affrancatura automatica e alzata automatica del piedino.

Camarb N21-AIO-CG Camarb N21-AIO-CG Camarb N21-AIO-CG
Camarb

Camarb N21-AIO-CG

Post-bed sewing machine with servo-drive integrated in the sewing head, single needle, rotary feed dog, synchronized needle and presser foot.

LARGE HOOK with enlarged bobbin, thread trimmer, electric backtracking and electric presser foot lift.

Camarb N21-AIO Camarb N21-AIO Camarb N21-AIO
Camarb

Camarb N21-AIO

Post-bed sewing machine with servo-drive integrated in the sewing head, single needle, rotary feed dog, synchronized needle and presser foot.

Thread trimmer, electric backtracking and electric presser foot lift.

N24-AC-Z N24-AC-Z N24-AC-Z
Camarb

N24-AC-Z

Zig-zag post-bed sewing machine for medium-heavy materials as leather, artificial leather, heavy clothes etc.

F04 CG-VD F04 CG-VD
CMCI

F04 CG-VD

Macchina per cucire a colonna speciale per cuciture ornamentali su guardolo (cuoio e salpa) con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

BF-315 BF-315
CMCI

BF-315

Macchina per cucire tomaie su fondi a cassetta (in particolare scarpe da bambino), trasporto a punta d'ago con crochet rotativo.

Optional: Affrancatura iniziale e finale in automatico e dotazione di retromarcia.

Camarb N31-AIO-CG-M Camarb N31-AIO-CG-M Camarb N31-AIO-CG-M
Camarb

Camarb N31-AIO-CG-M

The CAMARB N31-ALL-IN-ONE-CG-M (MECHANICAL with Crocet Grande) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.

Crocet Grande, thread trimming device, electric postage and electric presser foot lift.

Camarb N31-AIO-E Camarb N31-AIO-E Camarb N31-AIO-E
Camarb

Camarb N31-AIO-E

The CAMARB N31-ALL-IN-ONE-E (ELECTRONIC) is a post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, rotating feed dog, roller foot synchronized with the movement of the needle by means of motors step.

Thread trimming device, electric backtack and electric foot lift.

Camarb N31-AIO-E-C997-CAS B Camarb N31-AIO-E-C997-CAS B Camarb N31-AIO-E-C997-CAS B
Camarb

Camarb N31-AIO-E-C997-CAS B

The new CAMBAR N31-ALL-IN-ONE-E-C997-CBS is a post-bed sewing machine with single needle, electonic, with integrated servo motor.

Thread/Backtracking, double transport rotating syncrhronized by means of stepper motors.

Rotating horizontal hook, angle shaped sewing on heel.

You might also like

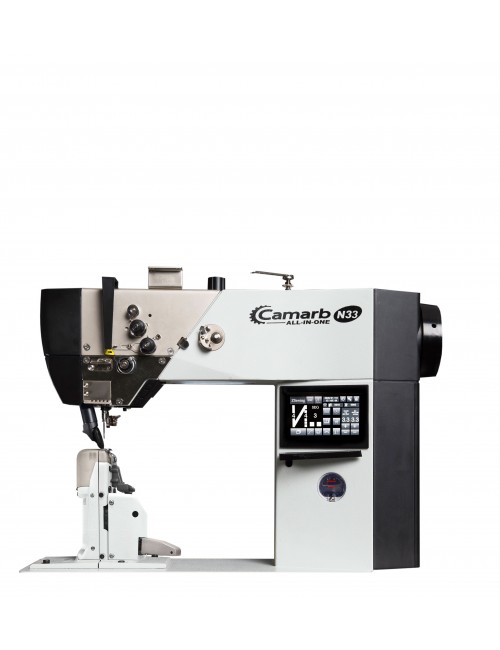

Spare Parts Camarb N33-AIO-M
