Camarb

Camarb N31-AIO-CG-M

€0.00
Tax included

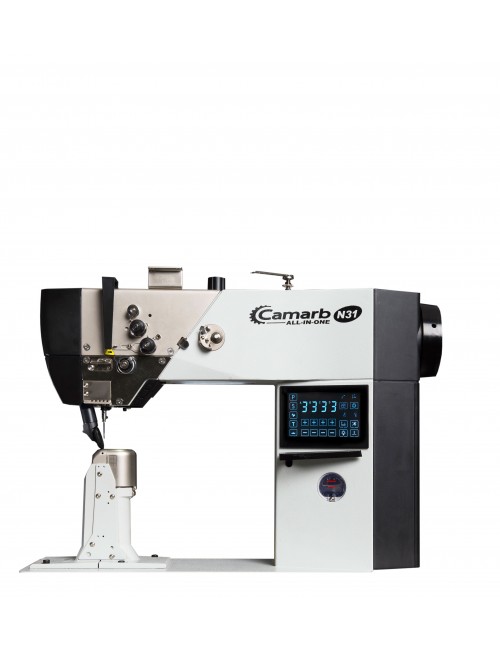

The CAMARB N31-ALL-IN-ONE-CG-M (MECHANICAL with Crocet Grande) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.

Crocet Grande, thread trimming device, electric postage and electric presser foot lift.

Quantity

Add to favorites Add to compare

Technical features

  • Stitch type: 301 (double lockstitch)
  • Needle system: 134
  • Passage under the roller foot: 7 mm
  • Passage width: 265 mm
  • Passage height: 70 mm
  • Column height: 180 mm

Head part size

  • Length: about 620 mm
  • Width: about 155 mm
  • Height (above the table): about 425 mm
  • Base plate dimensions: 520 x 177 mm
  • Maximum speed: 3000 stitches / min depending on the material, processing and stitch length
  • Net weight of the head: 70 kg
  • Gross weight of the head: 80 kg

Product Details

Camarb N31-AIO-CG-M

Data sheet

Functions
1 Needle
Kind of stitch
301
Needle system
134

Download

Scheda Tecnica N31-AIO-CG-M

Scheda Tecnica N31-AIO-CG-M

Download (195.47KB)

Man. Progr. N31-N32-N33-AIO-M

Download (1.53MB)

Cat Ric N31M-N32M-N33M AIO CG V2

Download (6.61MB)

Manuale Progr. N31-N32-N33-AIO-M

Download (1.53MB)
