Camarb

N24-AC-Z

€0.00
Tax included

Zig-zag post-bed sewing machine for medium-heavy materials as leather, artificial leather, heavy clothes etc.

Quantity

Add to favorites Add to compare

APPLICATION AREA

This machine is specially designed to run straight and zig zag stitches of high quality trough specific measures that enable it to maintain the accuracy of stitch difficult even using materials with medium-heavy and of a different nature.

PRODUCT ADVANTAGES

  • Parallel and vertical needle movements the needle can insert the sewing material entirely and vertically
  • Special enlarged vertical hook that improve the work efficiency
  • Indipendent and semi-automatic lubricating-systems, permanent lubrication and seal bearing, so that it can improve the use-life of parts

TECHNICAL DATA

  • Needle System: 120-19
  • Hook System: Double
  • Post-bed height: 187 mm
  • Max sewing speed: 2000 r.p.m.
  • Max stitch lenght: 5 mm
  • Max stitch width: 8 mm
  • Max stitch thickness: 6 mm
  • Needle bar stroke: 36 mm
  • Take up lever stroke: 82 mm
  • Presser lift by hand lever: 8 mm
  • Presser lift by knee lever: 10 mm
  • Electrical connection: single-phase V 230 - 50/60 Hz
  • Dimensions (LxPxH): 105x55x122 cm
  • Weight: 85 kg

Product Details

Camarb N24-AC-Z

Data sheet

Functions
Zig Zag
Max sewing speed
2000 r.p.m.
Max stitch lenght
5 mm
Lifting amount of presser foot
8 mm
Voltage
single-phase V 230 - 50/60 Hz
Dimensions
105x55x122 cm
Weight
85 kg

Download

Manuale Istruzioni N24-AC-Z

Download (1.21MB)

Scheda Tecnica N24-AC-Z

Download (303.94KB)

Quick Compare

Product
 F04 CG-VD F04/VD MT05/2 VD Mtype 888
Description

Macchina per cucire a colonna speciale per cuciture ornamentali su guardolo (cuoio e salpa) con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Macchina per cucire a colonna speciale per cuciture ornamentali finto mocassino e pelletteria con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Macchina per cucire mocassini tubolari e non, con vari disegni e un solo assetto di cucitura a richiesta.

Macchina a 1 o 2 aghi con trasporto a griffe differenziate, increspatura manuale preimpostata e variabile a mezzo ginocchiera durante la cucitura.

La macchina è predisposta per la realizzazione di 11 diverse cuciture e può cucire anche il mocassino montato.

Macchina a colonna a 1 ago montata su tavolo e sostegno con trasporto inferiore, trasporto a griffa rotante, punta d'ago e piedino a rotella sincronizzato, crochet grande montato su albero orizzontale, dispositivo rasafilo, sollevamento del piedino automatico e affrancatura automatica.

Disponibile anche in versione a 2 aghi.
Functions
 2 Needles 2 Needles 2 Needles 2 Needles
Max sewing speed
 500 punti/min 500 punti/min 500 punti/min 3.000 s.p.m.
Max stitch lenght
 0-12 mm 0-12 mm 0-8 mm 4,0 mm
Lifting amount of presser foot
 12,0 mm
Needle system
 328-214 x 1 328-214 x 1 328-214 x 2 134 LR
Voltage
 220V 50/60 Hz 220V 50/60 Hz V 230-50/60 hz
Dimensions
 106x55x107 cm
Weight
 100 kg 100 kg 130 kg 110 kg

In the same category

MT05/2 VD MT05/2 VD
CMCI

MT05/2 VD

Macchina per cucire mocassini tubolari e non, con vari disegni e un solo assetto di cucitura a richiesta.

Macchina a 1 o 2 aghi con trasporto a griffe differenziate, increspatura manuale preimpostata e variabile a mezzo ginocchiera durante la cucitura.

La macchina è predisposta per la realizzazione di 11 diverse cuciture e può cucire anche il mocassino montato.

Camarb N31-AIO-E-C997-CAS Camarb N31-AIO-E-C997-CAS Camarb N31-AIO-E-C997-CAS
Camarb

Camarb N31-AIO-E-C997-CAS

The new Camarb N31-ALL-IN-ONE-E-C997-CAS is an extremely versatile and reliable post bed machine, available in the electronic version equipped with step motors.

Single needle, large vertical hook and in numerous other column configurations for any type of seam need.

Camarb N31-AIO-M Camarb N31-AIO-M Camarb N31-AIO-M
Camarb

Camarb N31-AIO-M

The CAMARB N31-ALL-IN-ONE-M is a MECHANICAL post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.

Thread trimming device, electric backtack and electric foot lift.

Camarb N33-AIO-M Camarb N33-AIO-M Camarb N33-AIO-M
Camarb

Camarb N33-AIO-M

The CAMBAR N33-ALL-IN-ONE-M (MECHANICAL) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, 1-needle, sew and trim, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.

Thread trimming device, electric backtack and electric presser foot lift.

Camarb N33-AIO-E Camarb N33-AIO-E Camarb N33-AIO-E
Camarb

Camarb N33-AIO-E

The CAMARB N33-ALL-IN-ONE-E (ELECTRONIC) is an electronic post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, sews and trims, rotating feed dog, roller foot synchronized with the movement of the needle by means of step motors.

Thread trimming device, electric backtack and electric foot lift.

Mtype 888 Mtype 888 Mtype 888
Durkopp Adler

Mtype 888

Macchina a colonna a 1 ago montata su tavolo e sostegno con trasporto inferiore, trasporto a griffa rotante, punta d'ago e piedino a rotella sincronizzato, crochet grande montato su albero orizzontale, dispositivo rasafilo, sollevamento del piedino automatico e affrancatura automatica.

Disponibile anche in versione a 2 aghi.

Camarb N31-AIO-CG-E Camarb N31-AIO-CG-E Camarb N31-AIO-CG-E
Camarb

Camarb N31-AIO-CG-E

The CAMARB N31-ALL-IN-ONE-CG-E (ELECTRONIC with BIG CROCHET) is a post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, rotating feed dog, roller foot synchronized with the movement of the needle by means of step motors.

Crocet Grande, thread trimming device, electric postage and electric presser foot lift.

591 591 591
Pfaff

591

Macchina  a colonna ad un ago, utilizzata per la maggior parte dei lavori di cucitura nella produzione di calzature uomo/donna, calzature antinfortunistiche e pelletteria.

Dotata di trasporto a griffa rotante, piedino a rotella, trasporto ago e, a seconda delle versioni, dispositivo rasafilo, affrancatura automatica e alzata automatica del piedino.

1591 1591 1591
Pfaff

1591

Macchina  a colonna elettronica ad un ago, utilizzata per la maggior parte dei lavori di cucitura nella produzione di calzature uomo/donna, calzature antinfortunistiche, pelletteria e interni di automobili.

Dotata di trasporto a griffa rotante, piedino a rotella, trasporto ago, dispositivo rasafilo (regolabile), affrancatura automatica e alzata automatica del piedino.

F04/VD
CMCI

F04/VD

Macchina per cucire a colonna speciale per cuciture ornamentali finto mocassino e pelletteria con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

Camarb N31-AIO-E Camarb N31-AIO-E Camarb N31-AIO-E
Camarb

Camarb N31-AIO-E

The CAMARB N31-ALL-IN-ONE-E (ELECTRONIC) is a post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, rotating feed dog, roller foot synchronized with the movement of the needle by means of motors step.

Thread trimming device, electric backtack and electric foot lift.

Camarb N31-AIO-E-C997-CAS B Camarb N31-AIO-E-C997-CAS B Camarb N31-AIO-E-C997-CAS B
Camarb

Camarb N31-AIO-E-C997-CAS B

The new CAMBAR N31-ALL-IN-ONE-E-C997-CBS is a post-bed sewing machine with single needle, electonic, with integrated servo motor.

Thread/Backtracking, double transport rotating syncrhronized by means of stepper motors.

Rotating horizontal hook, angle shaped sewing on heel.

F04 CG-VD F04 CG-VD
CMCI

F04 CG-VD

Macchina per cucire a colonna speciale per cuciture ornamentali su guardolo (cuoio e salpa) con disegni vari a 1 o 2 aghi, con crochet oscillante ingrandito, trasporto a griffa fissa e piedini.

Motore Efka.

BF-315 BF-315
CMCI

BF-315

Macchina per cucire tomaie su fondi a cassetta (in particolare scarpe da bambino), trasporto a punta d'ago con crochet rotativo.

Optional: Affrancatura iniziale e finale in automatico e dotazione di retromarcia.

Camarb N31-AIO-CG-M Camarb N31-AIO-CG-M Camarb N31-AIO-CG-M
Camarb

Camarb N31-AIO-CG-M

The CAMARB N31-ALL-IN-ONE-CG-M (MECHANICAL with Crocet Grande) is a mechanical post bed sewing machine with servo motor integrated in the sewing head, with 1 needle, rotating feed dog, roller foot synchronized with the movement of the needle by means of bearings.

Crocet Grande, thread trimming device, electric postage and electric presser foot lift.

Camarb N31-AIO-E-C997-CP Camarb N31-AIO-E-C997-CP Camarb N31-AIO-E-C997-CP
Camarb

Camarb N31-AIO-E-C997-CP

The CAMARB N31-ALL IN ONE-E-C997-CP is a post-bed sewing machine with servo-drive integrated in the sewing head, single needle, rotary feed dog, synchronized needle and presser foot by means of stepper motors.

Thread trimmer, electric backtracking and electric presser foot lift.

Small Crochet.

You might also like

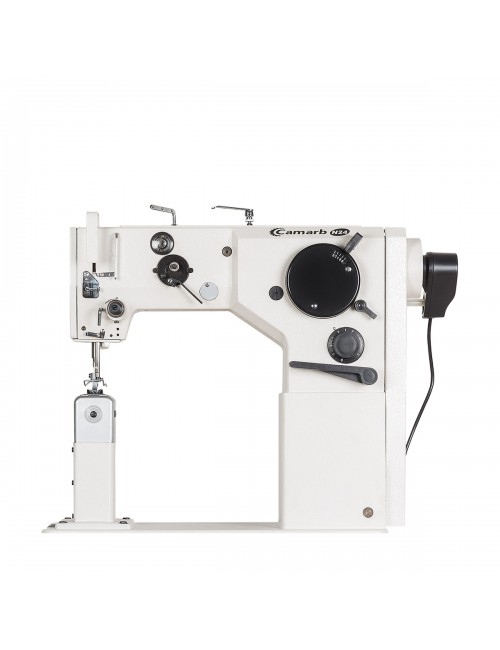

Spare Parts N24-AC-Z
